MLModi

Command: MLModi

Select MultiLines: <select one or more multiline objects>

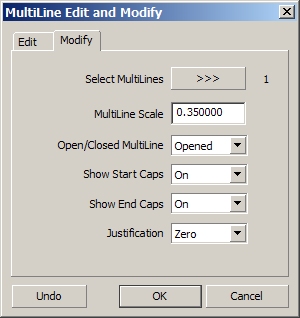

The dialog shows all multiline properties, that are stored "per entity" - these properties are taken from multiline style when the multiline is created, but are entity-specific afterwards.

If exactly 1 multiline is selected, all properties are directly shown;

if there are 2 or more multilines selected, particular properties will only be shown, if all multilines have the same property values - otherwise, the field keeps empty to indicate different values (similar to Bricscad's PropertyManager).

Any change of properties will immediately update all selected multilines (see Undo).

Select MultiLines

At any time, you can select other multiline(s) for editing. Previously selected multilines will keep their current properties (no Cancel of previous edit).

Undo

The dialog has a separate Undo stack, each property change can be undone, until all changes are undone -  if no Undo data are available, the button is disabled.
