MLEdit

Command: MLEdit

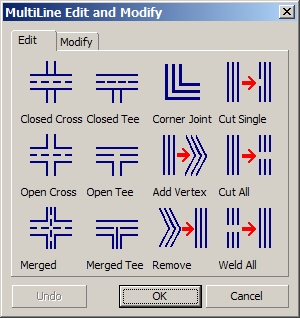

There are several utilities provided to modify multiline crossings, connections and vertex sequence.

Due to missing API support in DwgDirect and BricsCAD, most of these functions are not yet available - but we are working on it to get some of the more important functions to be implemented in near future.

We are very sorry for this inconvenience !

Closed Cross

creates a "closed cross" intersection from 2 selected multilines - the first selected multiline has priority.

Open Cross

creates an "open cross" intersection from 2 selected multilines - for the second multiline, only the outer-most lines will get breaks.

Merged

creates an "merged cross" intersection from 2 selected multilines - both multilines have same priority.

Closed Tee

creates a "closed tee" intersection - the first multiline is trimmed resp. extended to the second multiline.

Open Tee

creates an "open tee" intersection - the first multiline is trimmed resp. extended to the second multiline, which is also opened.

Merged Tee

creates a "merged tee" intersection - the first multiline is trimmed resp. extended to the second multiline.

Corner Joint

creates a "corner joint" intersection - the elements of both multilines are trimmed resp. extended to their intersections.

Add Vertex

inserts a new vertex into the multiline.

Remove Vertex

removes a vertex from the multiline.

Cut Single

inserts a cut into selected element of a multiline.

Cut All

inserts a cut into all elements of a multiline.

Weld All

removes all cuts from all multiline segments.
