Edit general Properties of Multiline Styles

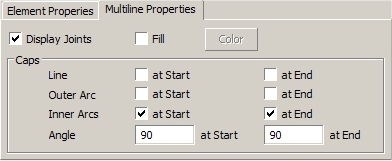

For each element of a multiline style, a number of general properties are available to control the visual representation of a multiline.

Any change to these properties is immediately updated in multiline style preview.

Display Joints

This option determines whether joint (or "miter") lines between the multiline elements at each vertex.


Fill

Determines whether the multiline uses a background fill color.


Color

If Fill is active, the color selection dialog opens to select the fill color



Line at Start


This option determines, whether a line segment across multiline elements is shown at the start side of the multiline.


Line at End


This option determines, whether a line segment across multiline elements is shown at the end side of the multiline.


Outer Arc at Start


This option determines, whether an arc between the 2 outermost multiline elements is shown at the start side of the multiline.


Outer Arc at End


This option determines, whether an arc between the 2 outermost multiline elements is shown at the end side of the multiline.


Inner Arcs at Start


This option determines, whether arcs between inner pairs of multiline elements is shown at the start side of the multiline.

If the style has an odd number of elements, the central line elements remains unconnected.


Inner Arcs at End


This option determines, whether arcs between inner pairs of multiline elements is shown at the end side of the multiline.

If the style has an odd number of elements, the central line elements remains unconnected.


Angle at Start


Specifies the angle for the end cap at the start side of the multiline. This angle is meant as an offset to mathematical 0 degrees.


Angle at End


Specifies the angle for the end cap at the end side of the multiline. This angle is meant as an offset to mathematical 0 degrees.
