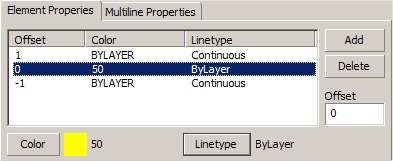

Edit Properties of Multiline Style Elements


For each element of a multiline element, the offset (to 0.0), color and linetype can be specified.

Any change to these properties is immediately updated in multiline style preview.

Add

Adds a new multiline element at specified offset.


Delete

Deletes the selected element from style (except for last element).


Offset

Defines the offset for selected or new multiline element (for selected element, press enter to update the list and preview)



Color


Opens the standard color selection dialog to choose the color for selected or new multiline element.


Linetype


Opens the standard Linetype selection dialog to choose the linetype for selected or new multiline element.
