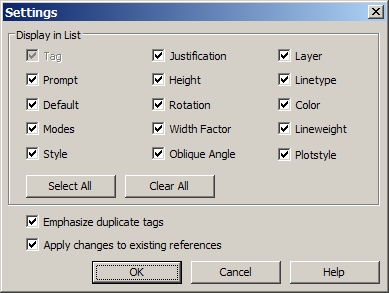

Settings Dialog

Edits Battman Settings

Specifies the property columns to be displayed for the attributes list..

It also defines some basic behaviour for the Battman dialog.

Display in List

This allows to customize which property columns should be displayed for the attribute list - the TAG filed can not be disabled.

These settings are permanent across BricsCAD sessions.

Emphasize duplicate tags

If this option is active, duplicate attribute tags will be emphasized in the attribute list - it is suggested to keep this option active.

Apply changes to existing references

Specifies whether existing block references shall be updated with new properties.

If this option is not active, only attributes for new block references will use new attribute settings.

Alternatively, you can use Sync or Sync Sel functions in main dialog, to update all existing or only selected block references.
